Summary0000914: [BFX-AT100] RCU is disconnected via timeout. please investigate why didn't send empty packet.
Descriptionhi kerwin
i receive some report from RCU company.
They think it is a critical issue.

This issue happen on Smart3 box with BRM_BA02.
a disconnected RCU issue happen via timeout. (within 18hours)

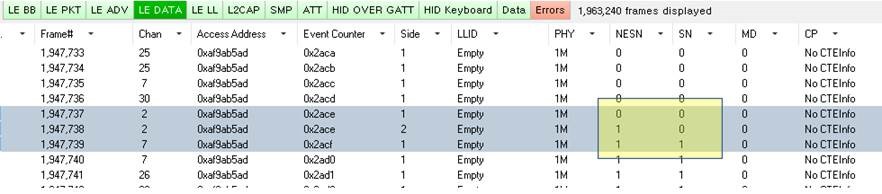

 1. frame 1,947,738 : RCU response as empty packet.
    as renewal as NESN,SN of frame 1,947,738, STB received empty packet of RCU(1,947,738).
   Please see RCU_Empty.jpg

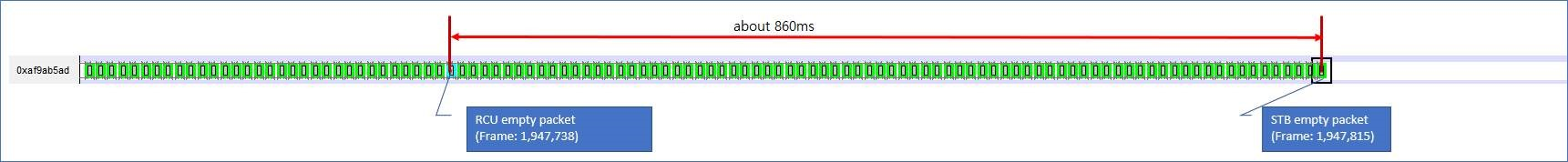

  2. Frame 1947,815 last, STB no longer sends empty packets (approximately 860 ms)
 please see don_t_send_packet.jpg
  3. after step 2, it happen connection timeout. so it is disconnected.

 please see air log.
https://drive.google.com/file/d/14i1gsVM7qxVzfqAIilumSTQAtcB9OGLW/view?usp=sharing

for your reference, it is about 130cm a distance btw STB and RCU.

Thanks.

TagsNo tags attached.
Attach Tags

Users monitoring this issue

User List (ALTech) SY Yoon , (ALTech) Wooshin Kang

Activities

(ALTech) Jason Park

2020-09-04 17:48

developer


(ALTech) Jason Park

2020-09-04 18:05

developer   ~0004243

hi kerwin

RCU Company reproduced same issue regarding to didn't send empty packet so RCU seem to be disconnected.
They think it is a critical issue. we have to solve it during BTF QA/BMT.
 it is about 130cm a distance between STB and RCU.

after frame 223,730(RCU response), STB send 16 times empty packet and don't send it any more ( red block)

https://drive.google.com/file/d/1Sk7wYmuOFLhO346FcG2upfmpQ197s6no/view?usp=sharing

Thanks

(SW) Kerwin Chen

2020-09-07 14:13

developer   ~0004249

Last edited: 2020-09-07 14:22

(ALTech) Jason Park

2020-09-07 19:29

developer   ~0004255

hi kerwin

after install program, please check an loaded log.
http://www.fte.com/support/WPS-download.aspx?demo=Sodera&iid=CS

Thanks.

(SW) Kerwin Chen

2020-09-10 08:46

developer   ~0004281

Hi Jason,

Disconnect event happens in the log file.
However, STB and RCU re-connect automatically after 10s supervisor timeout.
I think it is not a critical issue.
Please check it with RCU company.

BTW, is it 100% reproducible ?
Please also share reproduce steps to us.

Thanks !

(ALTech) Jason Park

2020-09-10 14:09

developer   ~0004289

hi kerwin

I give a feedback from RCU. They think it is a critical issue.
I think we have to resolve it.

as your comment, although reconnect RCU, However, it is a critical issue regarding to not sent a empty packet from STB BT chipset.
during a period(supervision time) of don't send any packet , RCU don't work or when push a button of RCU, No send a release key. so it may proceed UI working at once.
(example: when push a key for navigate of channel, Menu.., don't work properly)

this issue is reproduced as 100% ratio. after paring RCU and left for a long time, it happen this issue.

(ALTech) Jason Park

2020-09-28 11:55

developer   ~0004485

hi kerwin

Is there any update from BT chip vendor?

Thanks
